DVT 98660 TBS WH — 90cm Vertical Decorative White Glass Chimney Hood in Full Glass Design with FreshAir Function

Limited Edition Zen White Series

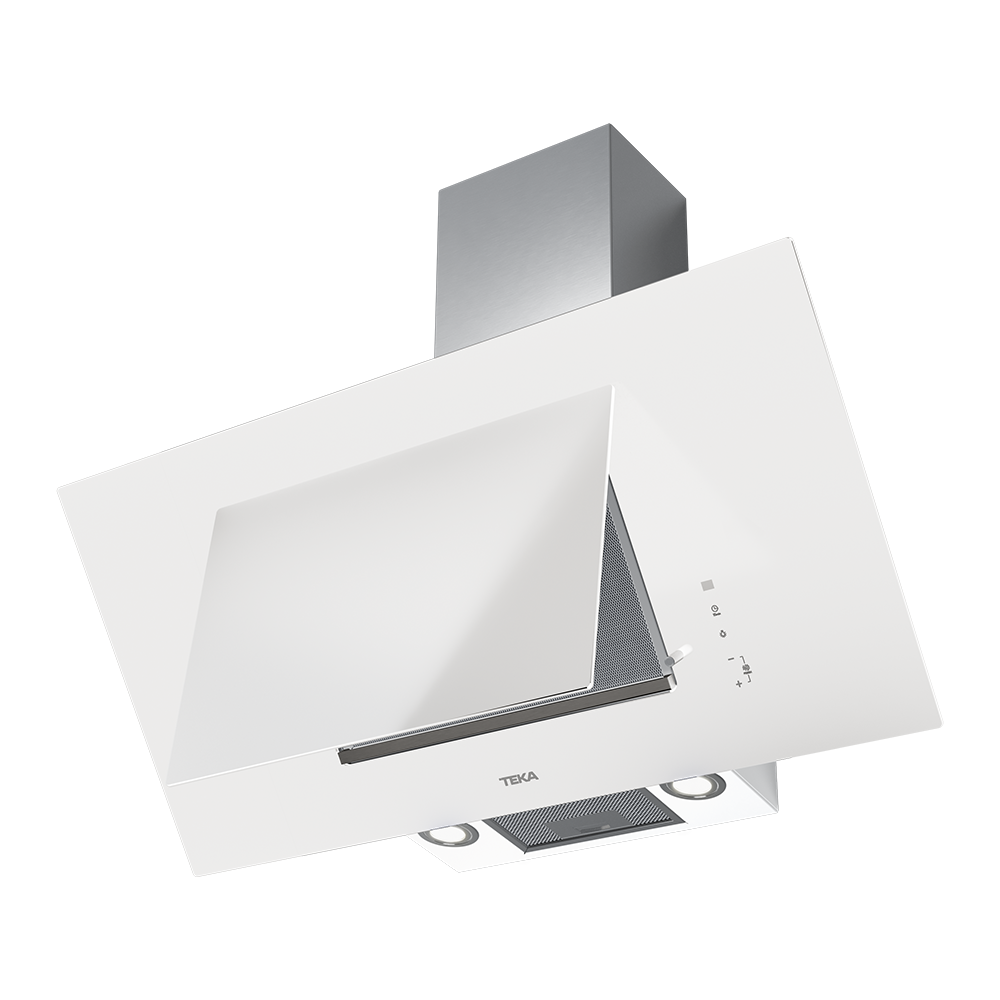

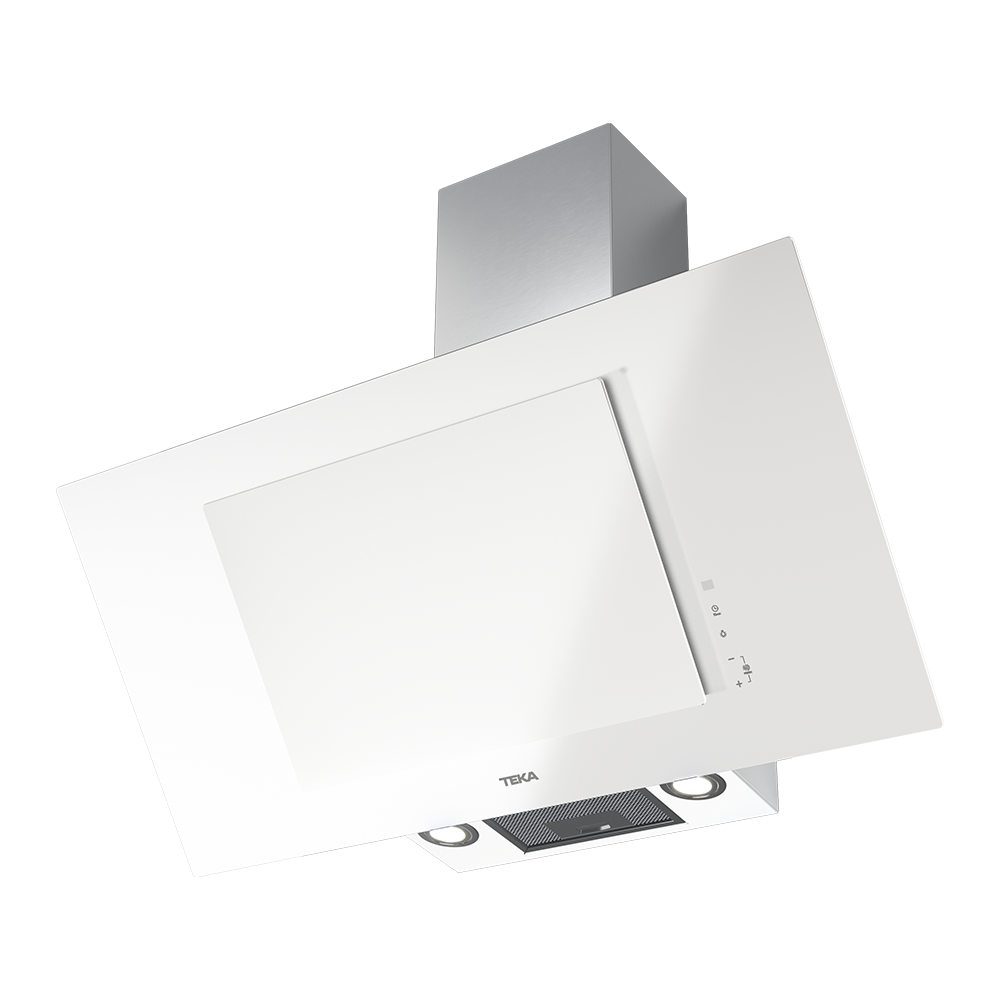

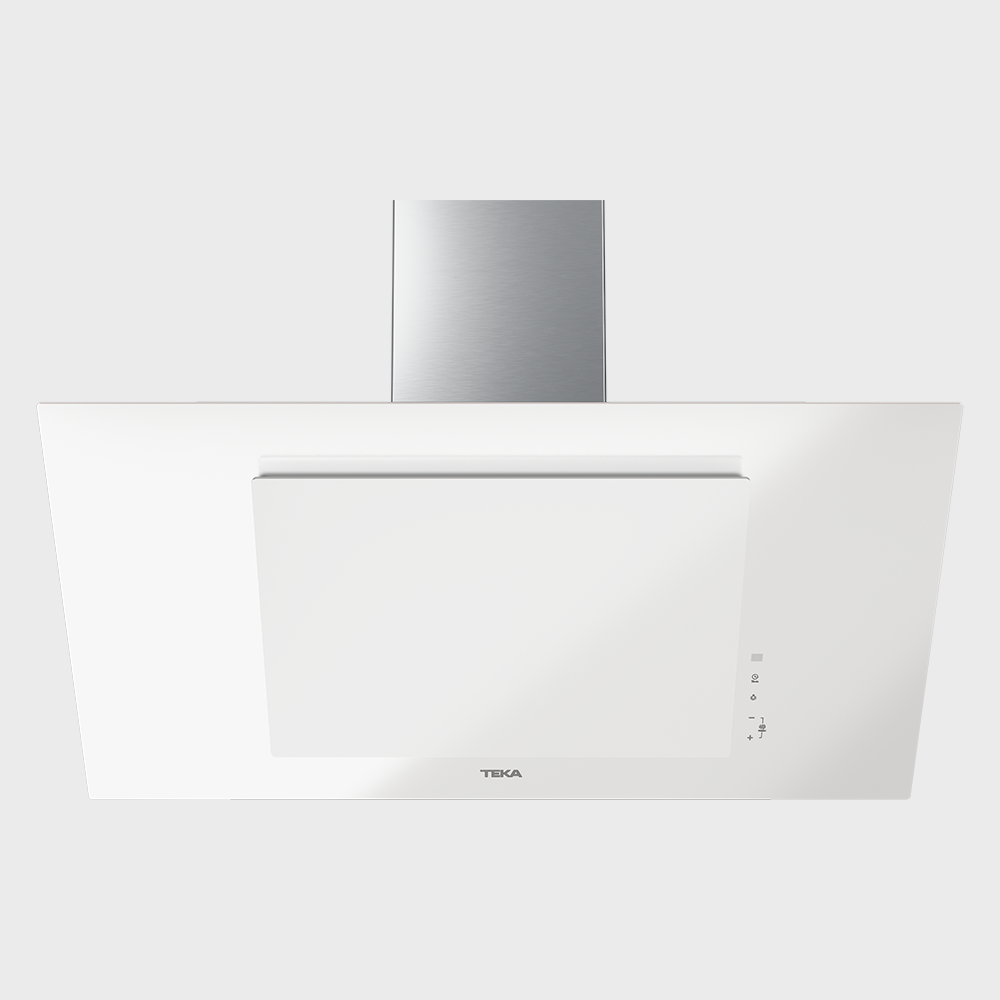

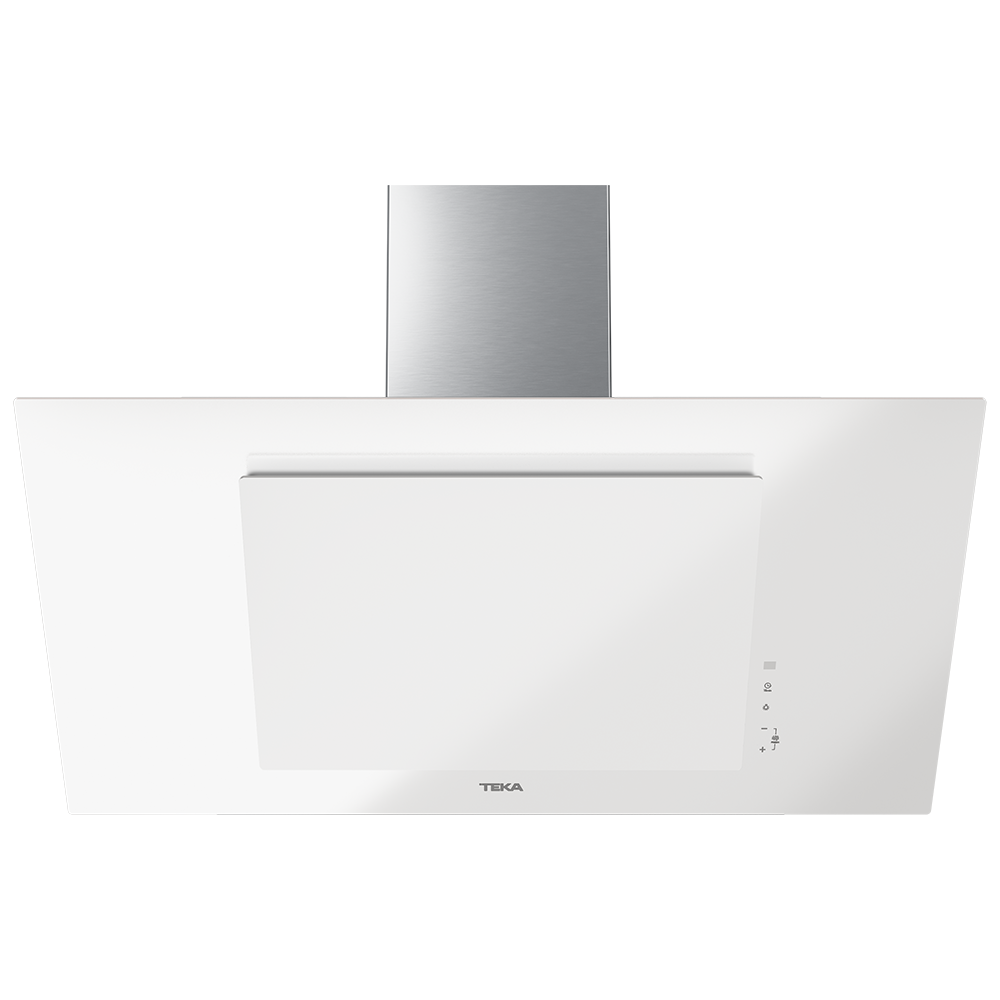

90cm Vertical Decorative White Glass Chimney Hood in Full Glass Design with FreshAir Function

Overview

• Overview
• Vertical decorative white glass chimney hood
• Dual aspiration system

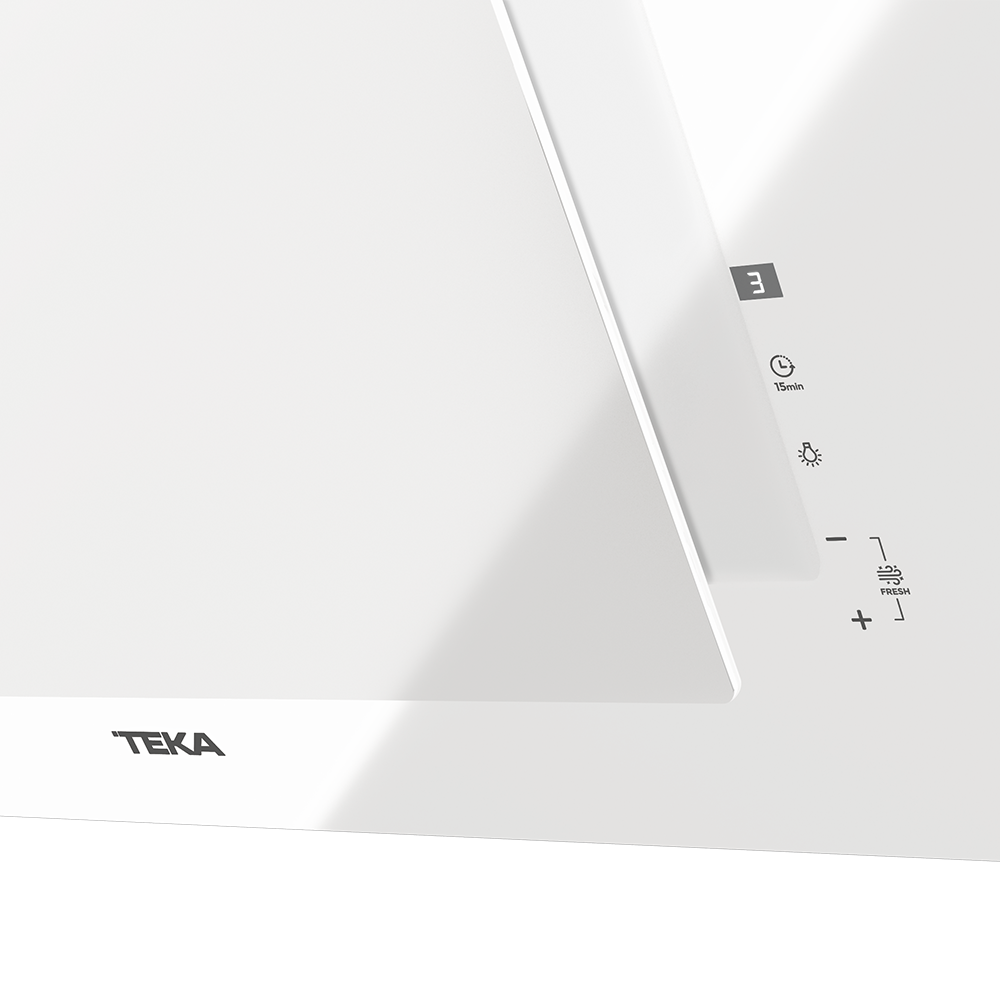

• Touch control with digital display
• FreshAir function
• 3 speeds + 1 intensive
• Intensive speed exhaust capacity (m³/h): 698
• Max speed exhaust capacity (m³/h): 584
• Min speed exhaust capacity (m³/h): 307
• Sound level
• Intensive speed sound level (dBA): 74
• Max speed sound level (dBA): 68
• Min speed sound level (dBA): 52
• Delay timer

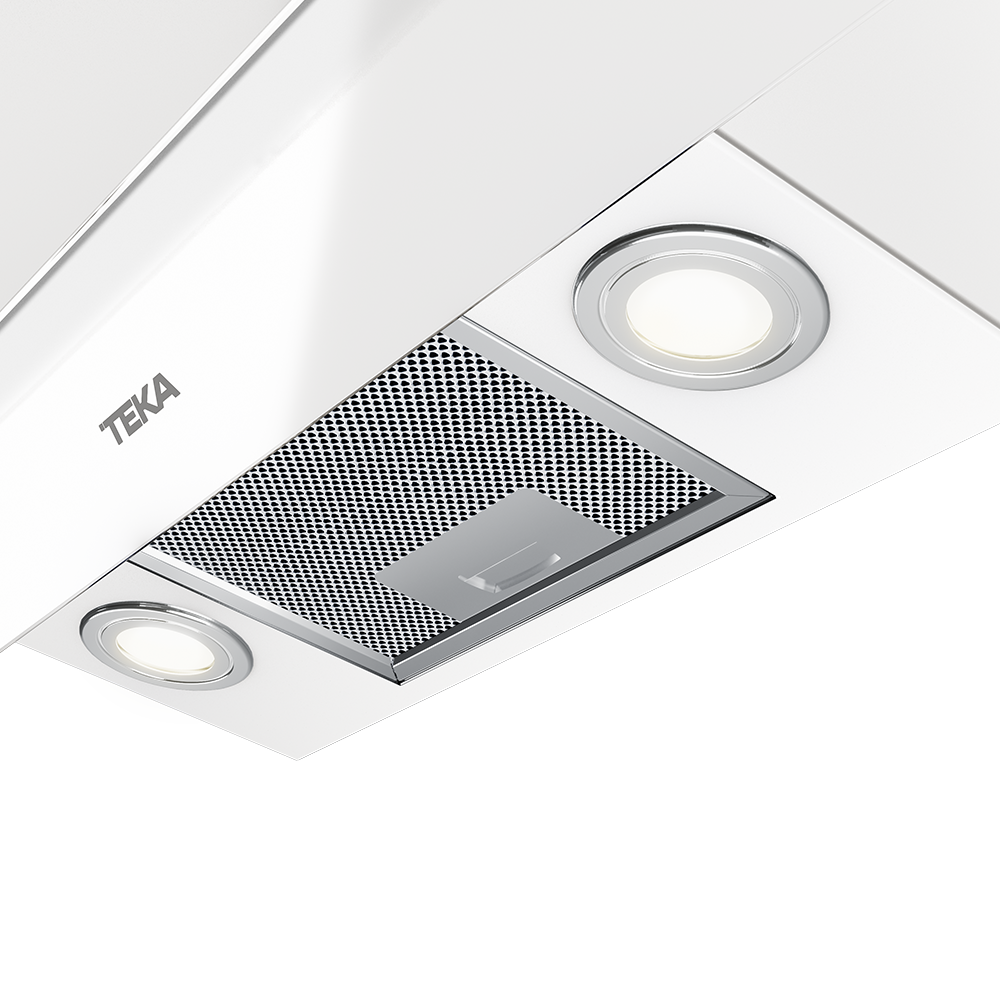

• 2 LED lamps
• Filter saturation indicator
• Metal filters
• Filter description: 2 Aluminium filters

Specifications

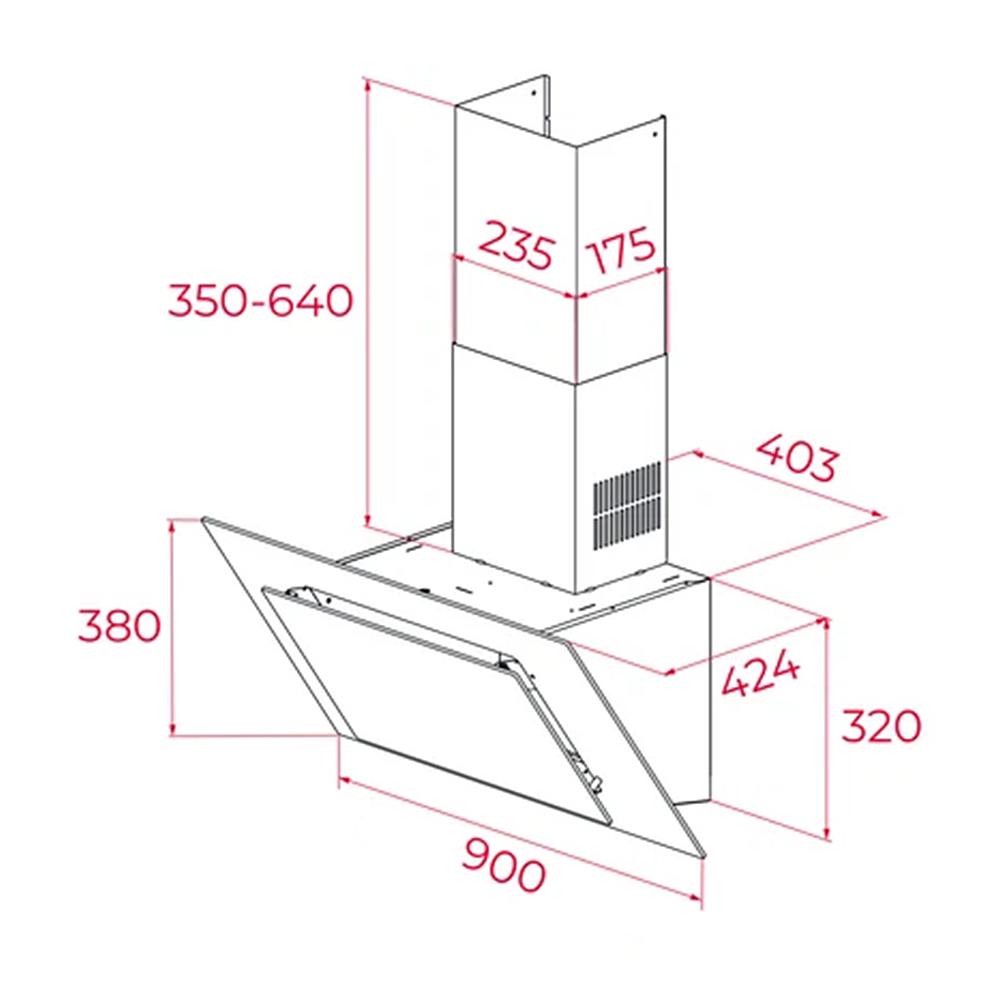

• General Measurements
• Product length (mm): 412
• Product width (mm): 900
• Product height (mm):800 - 1100
• Product weight (kg): 16.2
• Ø Outlet (mm): 150

Power Requirements

• Power rate (V): 220 - 240
• Frequency (Hz): 50/60
• Total hood power (W): 2286
• Number of motors: 1
• Motor power (W): 230
• Type of inner light: LED
• Inside light Consumption (W): 4.2
• Cable Connection Length (cm): 100
• Plug type: Schuko

Accessories

• Anti return valve: Yes
• Outlet extension: No
• Charcoal filter: Optional
• Conventional recirculation kit w/tube cover: Optional
• Anti return valve: Yes
• Outlet reduction: Yes
• Outlet extension: No
• Charcoal Filter: Optional (Model: C1RTK)
• Regenerative charcoal filter: Yes (Model: R1RTK)
• Conventional recirculation kit- w/tube cover: Optional (Model: CFH 15200 L2C)
• Regenerative recirculation kit - w/tube cover: Optional (Model: RFH 15200 L2C)
• Conventional recirculation kit (opt) w/o tube cover: Optional (Model: CFH 15200 O2C)
• Regenerative recirculation kit - w/o tube cover: Optional (Model: RFH 15200 O2C)

Manufacturer reference: 112930044 · EAN: 8434778013269
