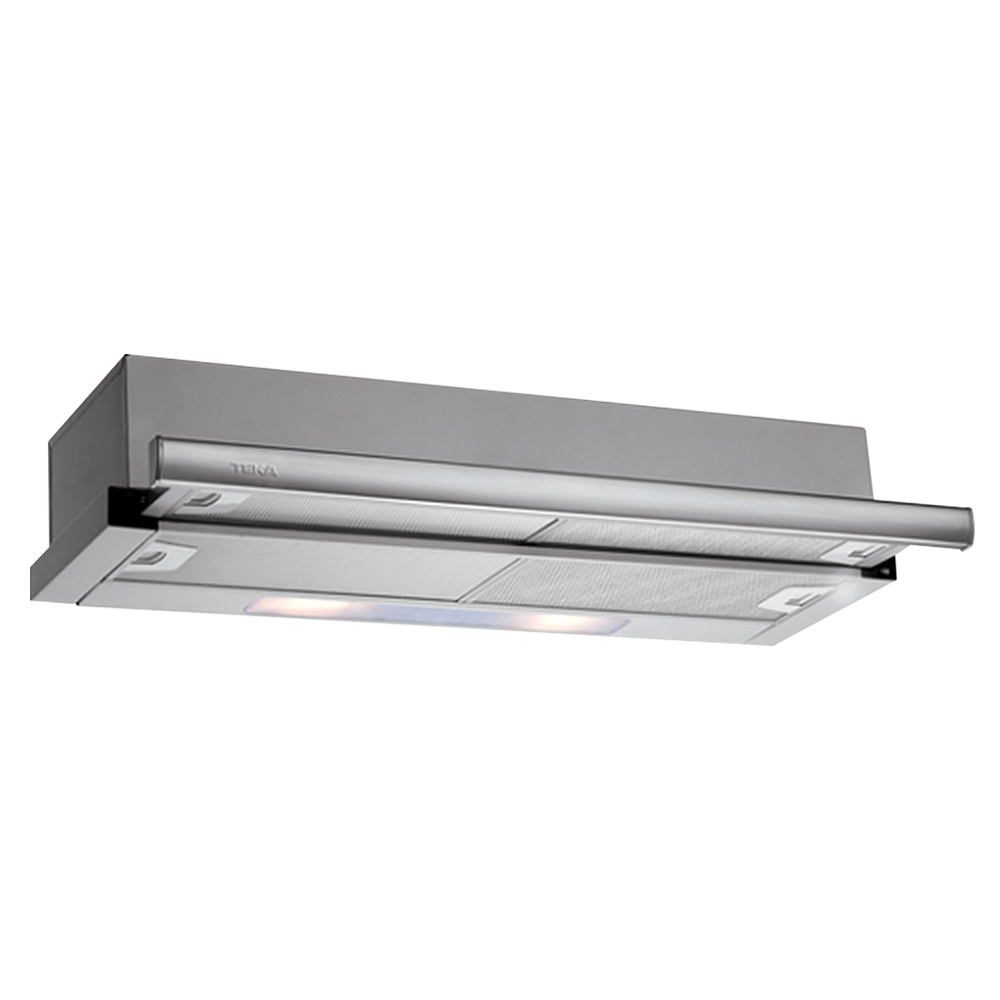

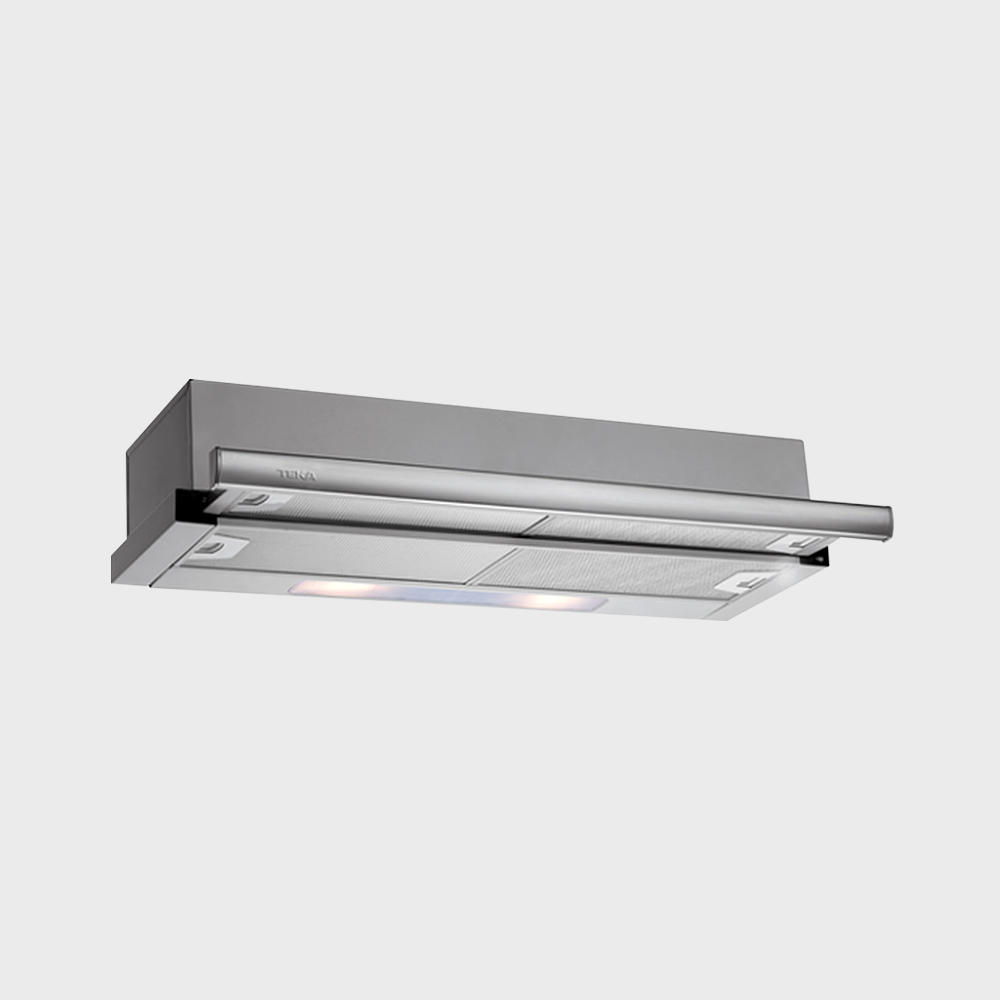

TL 9310 — 90cm slimline telescopic pull-out hood
$750.00
Sale price
$750.00
Regular price
$750.00
Skip to product information
TL 9310 — 90cm slimline telescopic pull-out hood
$750.00
Sale price
$750.00
Regular price
$750.00
90cm slimline telescopic pull-out hood
Overview
- Telescopic pull-out hood
- Mechanical control panel
- 2 speeds
- Exhaust capacities: (m³/h):
- Max exhaust 756
- Free outlet 366
- Max 332
- Min 233
- 2 Integrated LED lamps
- 4 aluminium filters
- Automatic lighting
- Exchangeable front panel
Specifications

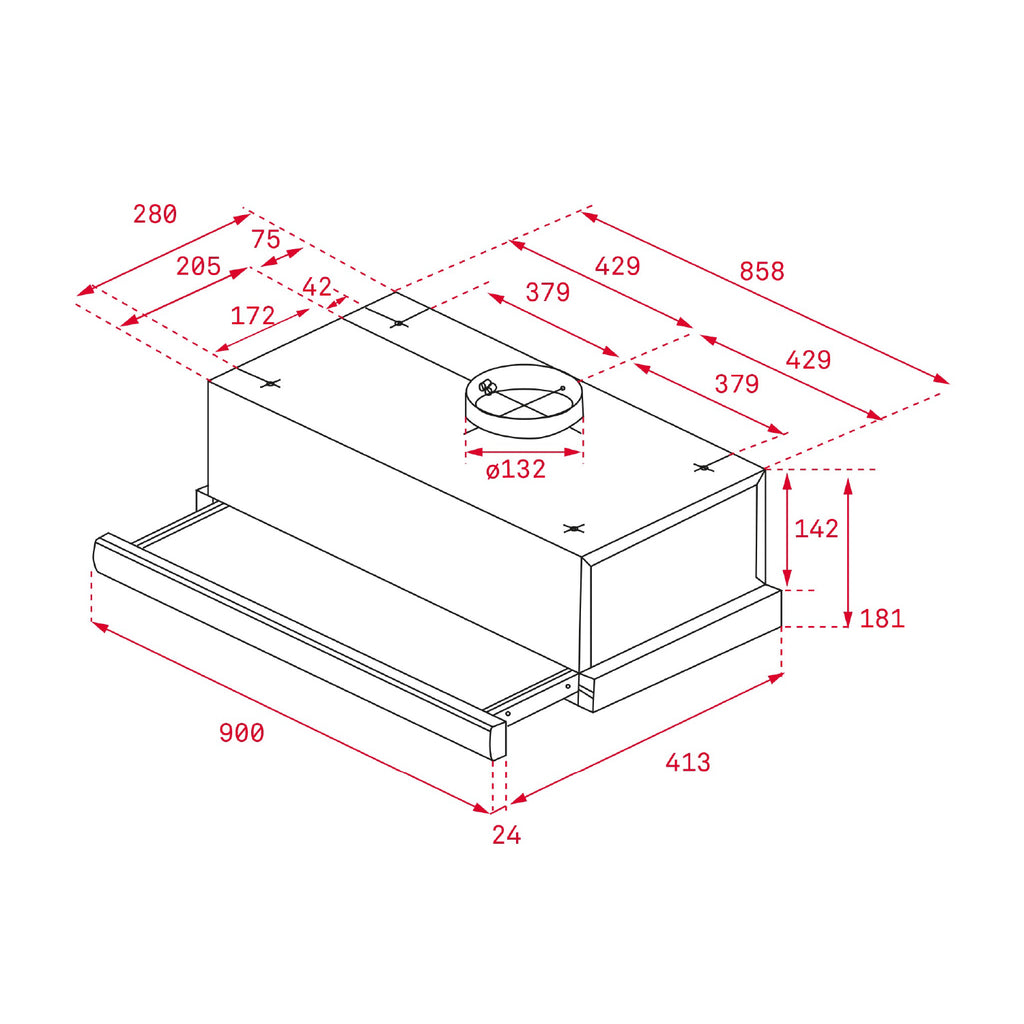

- Interior Measurements
- Inner Height (mm): 181
- General Measurements
- Product height (mm): 184
- Product width (mm): 900
- Product depth (mm): 280/413
- Net weight (Kg): 9.56
Power Requirements
- Type of inner light: LED
- Inside light Consumption (W): 6
- Plug type: European plug
- Power rate (V): 220240
- Frequency (Hz): 5060
- Total hood power (W): 142
- Number of motors: 1
- Motor power (W): 130 Annual energy consumption AEC kWh/annum (kWh): 71.2
Product Characteristics
- Ø Outlet (mm): 120
- Energy Efficiency Class: D
- Airflow (m³/h):
- Qmin 239
- Qmax 339
- Sound level (dB):
- Min Speed 56
- Max speed 65
- Grease Filtering Efficiency Class: D
- Lighting Efficiency Class: F
Accessories
- Anti return valve
- Outlet extension
- Charcoal Filter: C3C (Optional)
- Charcoal filter description: CHARCOAL FILTER C3C
Manufacturer reference: 40474390 · EAN: 8421152146002
